High Durability OptiCone Filters for Gold Series Dust Collectors

Key Features:

  • Exceptionallly rugged
  • Moisture resistant and reusable
  • Exceptionally long life
  • Higher operating temperatures
  • Double seal gasket for fewer leaks and easier filter changes

Dura-Pleat media is made of 100% spunbond polyester in a pleated design that combines the best of both worlds: the high efficiency of pleated media and the versatility of synthetic materials. Dura-Pleat filter cartridges are for Gold Series dust collectors for standard duty as well as medium temperature applications.

Dura-Pleat Filters Offer:

  • Double seal gasket
  • Added insurance against leaks
  • No dust settles on top of the filter
  • Built-in handles
  • Ergonomic removal and replacement
  • Durable and reusable media

Media Options

Camfil APC filters with Dura-Pleat technology utilize four types of filter media:

  • DPS - Dura-Pleat
    Our spunbonded, heavy-duty, all-purpose polyester media.
  • DPA - Aluminized
    Our Dura-Pleat media with a conductive aluminized finish applied for static dissipation.
  • DPO - Hydro-Oleophobic
    Our Dura-Pleat media coated with an oil and water repellent finish.
  • DPT - PTFE
    Our Dura-Pleat media with a laminated polytetrafluoroethylene (PTFE) membrane for very high efficiencies of fine particulate and superior dust cake release.

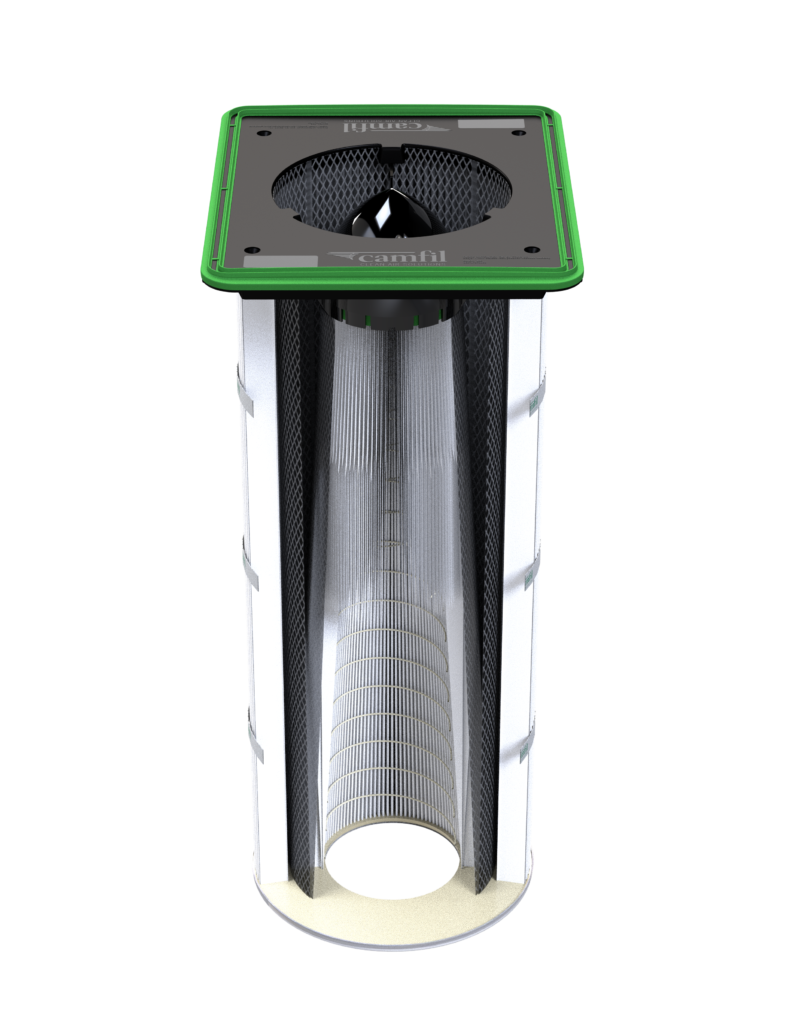

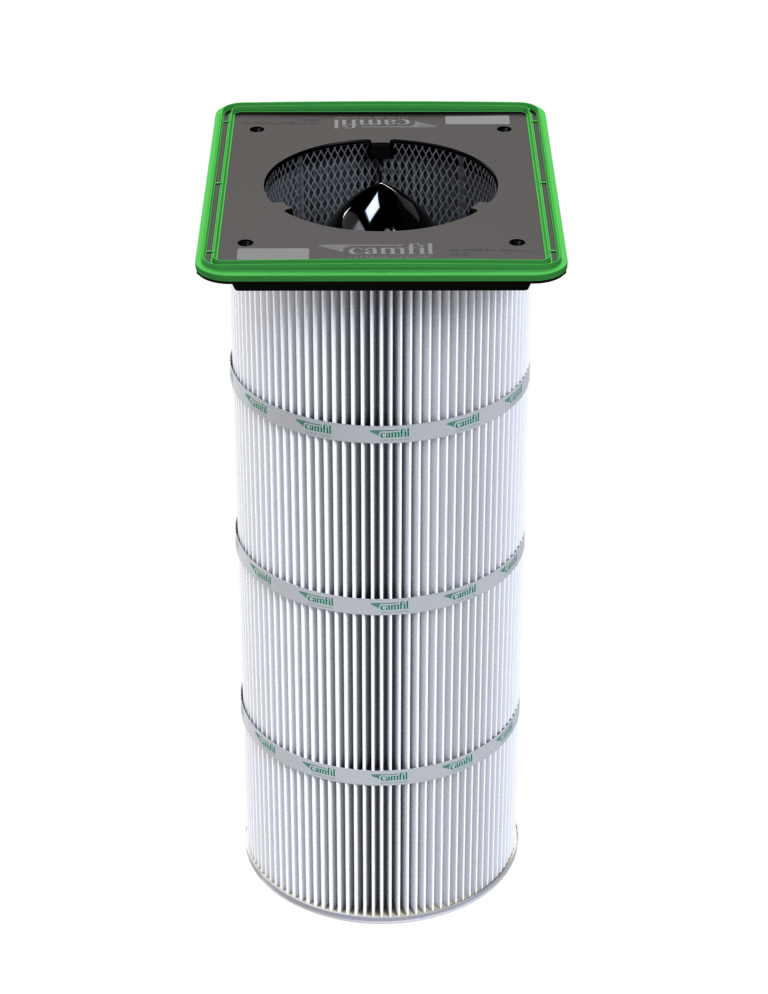

The Power of OptiCone™️ Filters

The patented OptiCone filter is engineered to clean better, last longer, and need less maintenance. The cone adds 30% more filter media and disperses air evenly throughout the filter when pulse cleaned.

Specifications

Efficiency

  • Up to MERV 16 per ASHRAE 52.2:2007

Max Operating Temp.

  • 200ºF (93ºC) 250ºF construction available

Dura-Pleat Medium Temperature

Key Benefits

  • Handles difficult dusts
  • Exceptionally long-lasting

Genuine Camfil APC Filters Offer:

  • Double seal gasket: For added insurance against leaks. Dust falls down and away into a collection bin instead of onto other filters.
  • Built-in handles for ergonomic removal and replacement.
  • Washable media that is durable and reusable.

Dura-Pleat filters are rated up to MERV 16.

Best for Tough Applications

This medium temperature cartridge is made to operate at temperatures up to 250°F (121°C).

It is well-suited for applications that are hot and dry such as pulverization and drying systems, cement dust, fertilizer production and torch cutting.

Specifications

Efficiency

  • Up to 99.995% on 0.5 μm and larger particles by weight

Max Operating Temp.

  • 250º F (121º C)
