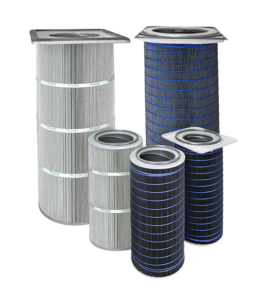

Camfil fabricates static dissipative filter cartridges using either OmniPleat® cellulose or DuraPleat spunbond media. OmniPleat Fire Retardant Carbon Impregnated media packs are made from a cellulose fiber blend that is impregnated with carbon and chemically treated with a fire retardant resin. OmniPleat eXtreme FR Carbon Impregnated packs are treated with a fire retardant resin, impregnated with carbon and have a nano membrane applied for improved efficiency and dust release. DuraPleat DPA media packs are made of heavy-duty, all-purpose polyester. The moisture-resistant media is coated with a conductive aluminized finish to provide static dissipation and good dust repellency. These filters have an efficiency rating of MERV 11. DuraPleat DPTC media packs are impregnated with carbon and laminated with a polytetrafluoroethylene (PTFE) membrane. These filters have an efficiency rating of MERV 16.

OmniPleat FC:

MERV 10

OmniPleat XFC:

MERV 15

DuraPleat DPA:

MERV 15

DuraPleat DPTC:

MERV 15

Patent Pending OmniPleat Technology

OmniPleat is Camfil's unique method for producing high-performance filter cartridges. Synthetic, custom-shaped glue beads are applied to both sides of the media pack to hold the pleats open and evenly spaced. This design helps ensure 100% media utilization. Filters made with OmniPleated media packs deliver a lower pressure drop and release more dust during pulse cleaning, reducing the energy demand on the fan motor and air consumption costs related to pulse cleaning. Camfil guarantees that filters manufactured with OmniPleat technology will last 30% longer than standard filters.
