Dust Collector To Safely Remove Toxic and Combustible Dusts From Your Factory or Shop

The Gold Series X-Flo (GSX) dust collector is the industry’s best-in-class dust collection system. It’s built on 20 years of successful performance of our award-winning Gold Series® system. It handles all kinds of toxic and combustible dusts and fumes, including fine, fibrous and heavy dust loads.

GSX dust collectors effectively process dust while maintaining a low pressure drop. You get the maximum airflow and dust processing power for any given footprint. GSX collectors use crossflow technology and a unique baffle configuration to create a uniform airflow that extends the life of your filters. Filter cartridges last longer and require fewer replacements, reducing the total cost of ownership.

GSX dust collectors are tested to meet ATE X & NFPA standards and available with many explosion & fire protection options including explosion vents, passive or active isolation valves, chemical isolation systems, integrated safety, integrated safety monitoring filters, and fire-retardant filter cartridges selected to best suit each application.

Key Features of the X-FLO Industrial Dust Collector

MODULAR DESIGN

It’s easy to customize the GSX industrial dust collector for your specific work environment. Individual modules accommodate airflows up to 10,000 m³/h each, providing a near-limitless variety of configurations. You get fast delivery of a system that is just right for your application and space. It's ideal for collecting dust from the manufacturing and processing of dry bulk powder.

MORE FILTER MEDIA, SAME FOOTPRINT

We designed the inlet, filter cartridges and filter position so each housing module can accommodate larger cartridges without increasing the overall footprint. Each module holds four cartridges of HemiPleat® filter media and maintains a low pressure drop.

GOLD CONEâ„¢ X-FLO FILTER CARTRIDGES

Gold Cone X-Flo (GCX) filter cartridges are the most advanced dust collector filters ever made. They feature proprietary HemiPleat® Gold ConeTM filters that stay cleaner and last longer than conventional pleated filters. Each GCX filter contains 34.8 square metres of media, offering the industry’s highest effective air-to-cloth ratio. This means fewer filters are required for a given application. GCX filters were designed specifically for the Gold Series X-Flo dust collector. Used together, you get the most powerful and costefficient dust collection system on the market. The innovative system maximizes airflow while minimizing filter changeouts, compressed air usage, pressure drop and energy costs.

GCX cartridges feature our proprietary Gold Cone inner pleat pack. This open-bottomed, inner cone of media greatly expands the usable surface area of cartridges. They stay cleaner and last longer than conventional pleated filters. The inner cone is configured so that pulsed air is evenly distributed top to bottom along the outer pack of the filter and down through the inner cone pack. With each pulse, the X-Flo filter cartridge ejects more dust out of the collector than any other filter and helps maintain a low pressure drop.

The downward-facing media offers a huge advantage over horizontal-style filters that pulse most of the dust back onto adjacent filters and only few into the hopper.

Industrial Dust Collector - X-FLO Gold Series

Mitigating Dust Collector Combustible Dust Hazards

Mitigating Dust Hazards - Industrial Dust Collector

KEY FEATURES OF GOLD SERIES INDUSTRIAL DUST COLLECTORS

Clean Air Symbol

Engineered to protect workers from occupational exposure of harmful dusts.

Explosion Protection Systems Symbol

Safely contains combustible dusts. Gold Series collectors with explosion protection systems exceed NFPA and ATEX standards.

Crossflow Technology Symbol

Crossflow technology creates a uniform airflow so filters cartridges last longer

Germs Symbol

Gold Cone filter cartridges are positioned vertically for superior release of high-loading dust with pulse-cleaning. They deliver maximum airflow and efficiency.

BUILT TO PERFORM

Industrial Dust Collector Model CodesThe Gold Series X-Flo industrial dust collector offers modular design for maximum flexibility. Have it your way fast! Each module accommodates airflows up to 10,000 m³/h each. Component configurations are virtually unlimited. Standard model configurations are GSX2, GSX4, GSX6, GSX8, GSX10, GSX12SQ, GSX16, GSX16L, GSX18, GSX20, GSX24, GSX32, GSX36, GSX40, GSX48, GSX48L, GSX56, GSX60, GSX72, GSX84, GSX96, GSX108, and GSX120, but any size configuration can be obtained.

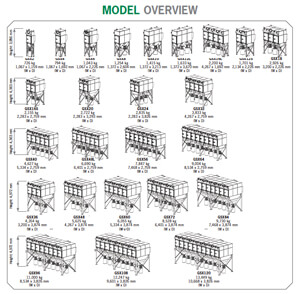

Gold Series X-Flo Model Overview

  • Explosion venting
  • Rotary airlock
  • Drum cover kit
  • Clean air chamber access
  • Custom colors
  • NEMA 7/9
  • Solenoid enclosure
  • Compressed air regulator
  • Leg length
  • Solenoid heater
  • Outlet weather hood
  • Extra cartridge access door
  • Hopper access door
  • Skid packages
  • Stinger explosion protection valve
  • Sprinkler system
  • Dust level indicator
  • Dustbin with drawers
  • Common trough hopper
  • Low Pro/Low Boy hoppers
  • Stainless steel construction
  • Various inlet designs
  • Platform and ladder
  • Self-dumping hopper
  • Screw conveyor
  • Integrated safety monitoring filter (iSMF)
  • Pharmaceutical options
  • Customization for specific applications
  • Overbags for fibrous dusts like paper and fiberglass
A GS24 with platform and ladder, silencer, blast plate, and custom door setup.

A GS24 with platform and ladder, silencer, blast plate, and custom door setup.

GS24 model with explosion vents and integrated HEPA filter.

Farr GS with directional explosion vent and integrated SMF.

Multiple FGS units with platform and ladder options and explosion vents.
